Cement tanker
TEKNİK BİLGİLER
Lider Trailer for manufacture all types of trailer and semi trailer in Turkey .

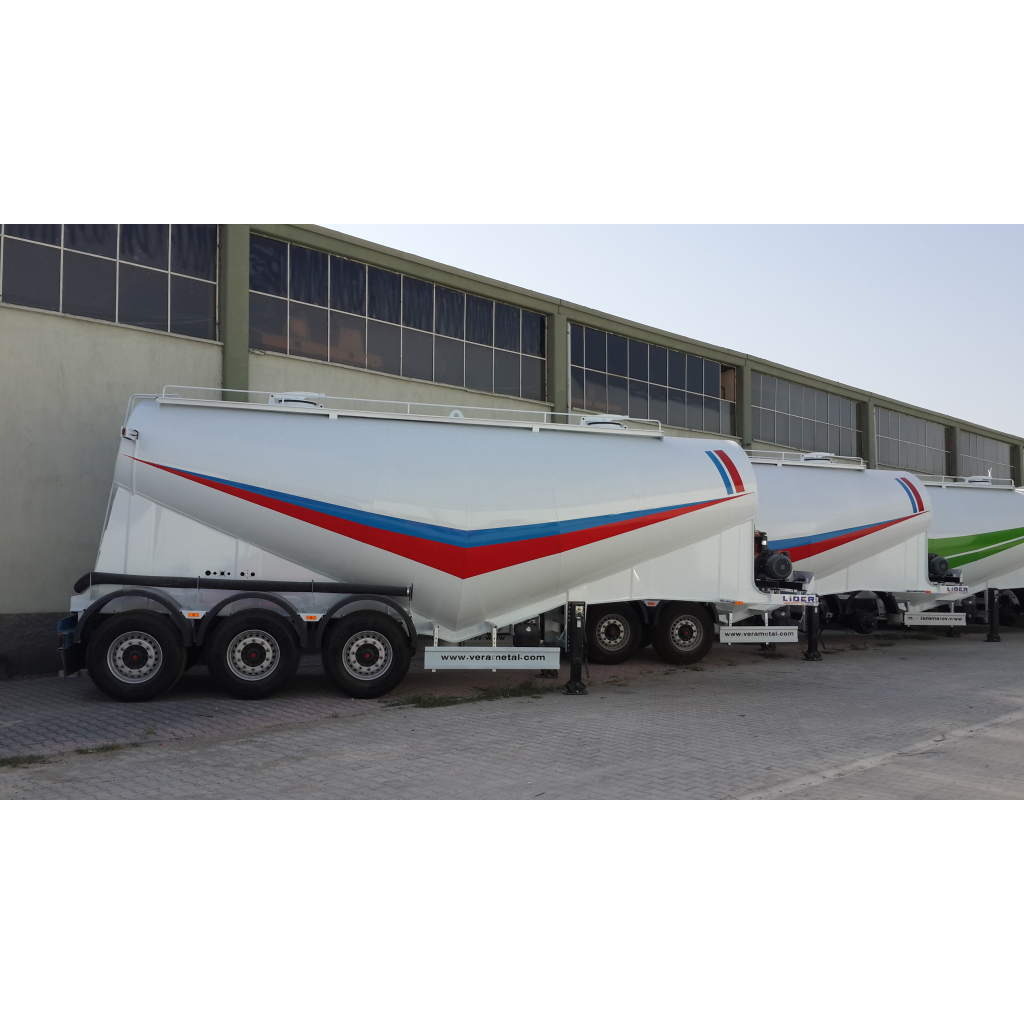

Also we manufacture all types of cement tankers with different volumes and dimensions .

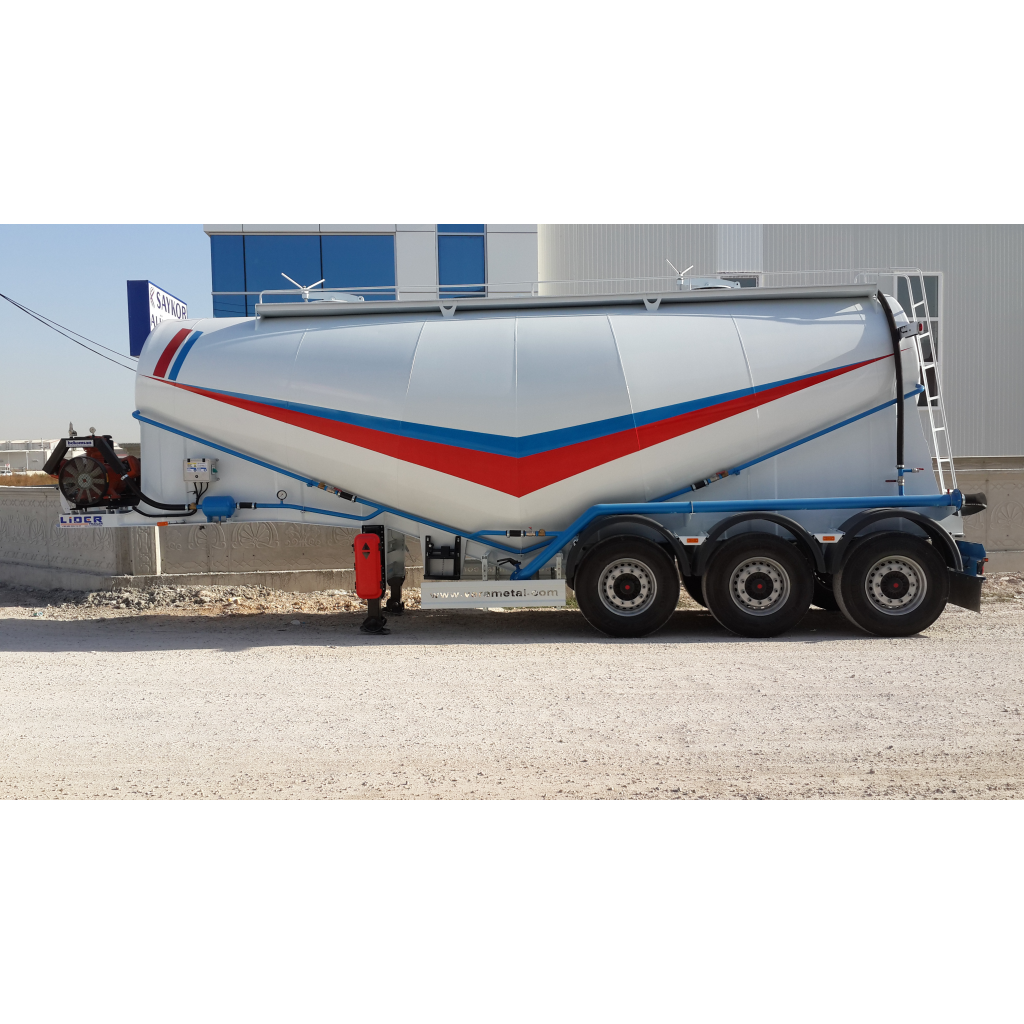

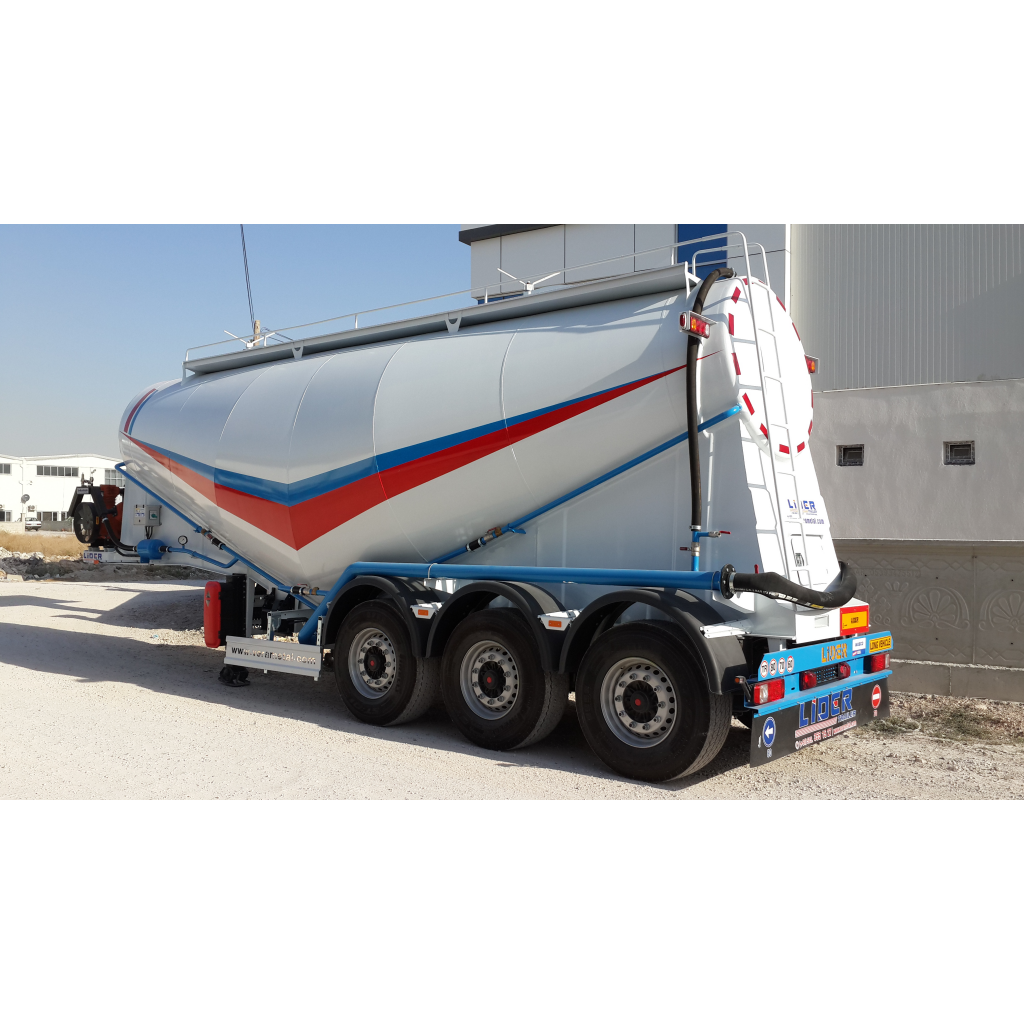

For example we manufacture a 35m³ cement tanker .
This cement tanker have a 45 ton capacity for transportaitons a bulk cement .
The specifications for 35m³ cement tankers .
| TECHNICAL INFORMATION | TECHNICAL DATA | |
| Chassis : Aluminum extrusion profile frame, welded inside the support | Fifth Wheel Height (H) : | 1.200 mm |
| console (Welded Construction) | Tank Height : | 3.866 mm |
| Brake System : There is a dual-circuit electro-pneumatic braking system with | Tank Diameter (W) : | 2.500 mm |
| EBS 2S / 2M antiblocking system suitable for UN ECE R13 | Wheelbase (WB) : | 5.523 mm |
| Axle Brand : Equipped with LİDER branded 3 air suspension axles with | External Length (L) : | 10.362 mm |
| 12 ton permissible load capacity each | Volume : | 35,0 m³ |
| Electric System : SABA lightning installation with 24 V LED side position | Tare Weight ±%3 : | 7000 kg |
| lamp and 2x7 and 1x15- pin sockets, in compliance | Test Pressure (Bar) : | 3,5 bar |
| with Regulation UN ECE R48 and ADR Legislation | Operation Pressure (Bar) : | 3,0 bar |
| Number Of 1 Compartment | ||
| Compartments : | STANDARD ACCESSORIES | |
| Manhole Number : 2 x DN450 Pressure Type Domes | 1. 2 pieces single covered, manhole resistant. | |
| Discharge Type : Discharge type from the rear | to test pressure | |
| Hose Carrier : 2 x DN 200 size 5 m. for two hoses with rear cover | 2. 1 piece air pressure monometer | |
| Counterfort: They are “Lider” brand with double revolutions | 3. 1 piece safety valve adjusted to 3,0 bar | |
| mechanic pillars with 24 tons carriying capacity | 4. 1 piece ball jet air valve that accelerates | |
| Rear Bumper: 70/221/ AT version rear bumper | discharging. | |
| Batten: 1 unit parking batten with moving equipment | 5. 1 piece tool kit box (at the body). | |

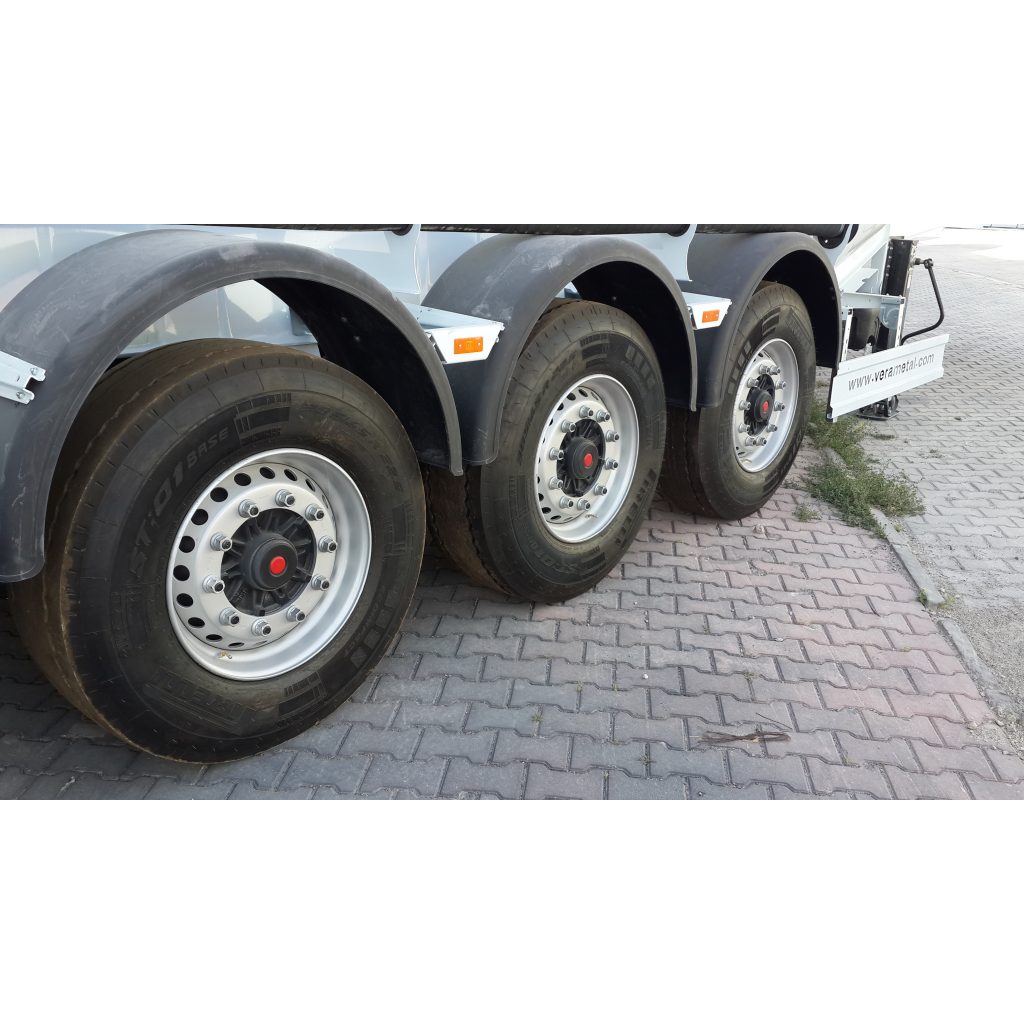

| Wheel and Rim : 385/65 R22,5 tyres 6 Units( Goodyear or Pirelli ) | 6. 1 piece nonskid ground walking platform. | |
| Mudguard : 2 unit complete mudguard | 7. 1 piece stair from rear existing. | |
| Spare Wheel : Single saddle type | 8. 2 pieces PVC carrier for discharging hoses. | |
| Cupboard: 1 unit cupboard | 9. 1 piece discharge valve box made of sheet | |
| Water Tank : 60 lt Cr–Ni water tank produced by stanless stell | ||
| Paint : Trailer clean before painting and repair with paste for | ||
| smooth face. Then prime paint and double last paint | ||
| regarding customer reguest in Paint Oven. | ||

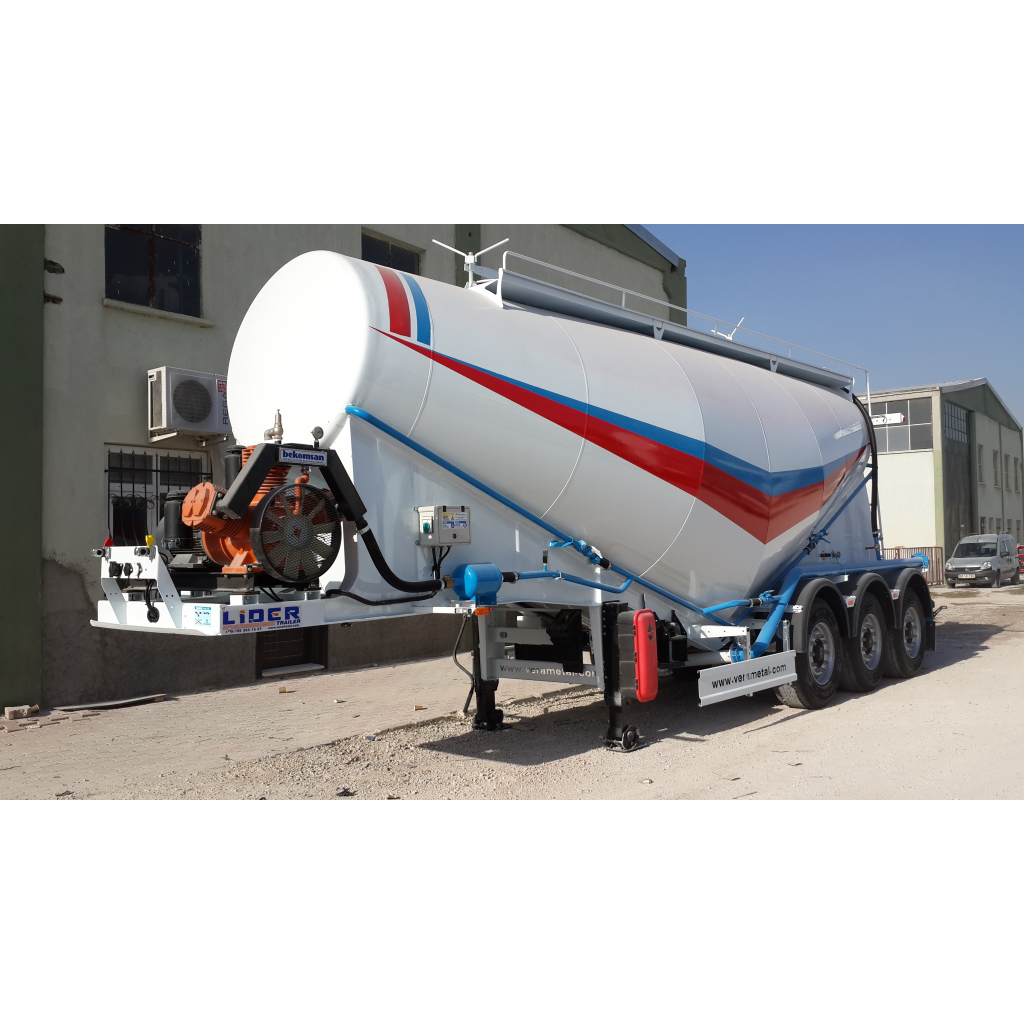

| Compressor: 3 heads, 8 m3 per minute, with flow rate, piston , Electric compressor | ||
| Tank Equipment : The tank is filled with air in 2 bars. It is discharged from 4” ball | ||
| valve at the ground aith the aid of vibration hoses on the ground. | ||
| Discharcing System : 1.5 m3/min (in the sufficient air pressure | ||
| Safety Valve : It limits the pressure inside of the tank with 2 bars So this specifications can be changa by customers request and according to customers special specifications . Please contact us for get a offer about cement tanker . |
